BBCIII BREADBOARD POWER SUPPLY KIT
The BBCIII kit comes with its own instruction sheet and a link to the Theoretical Basics of Electricity.
Each kit provides a companion breadboard with the following:
- 5 Volt, 0 Volt, and 9 Volt connection to breadboard Adjustable, square-wave clock pulse with Schmitt Trigger
- 4 new and improved logic switches for inputs
- 4 LED logic indicators for outputs
- Test Points for oscilloscope testing
- Ground clip for easy probe testing
- Adapters that will allow for a 9V battery or a DC transformer to serve as power source (not included).
Price discounts for 50+ kits are available only by purchase order
Please see our pricing structure for all prices by quantity and Flat Shipping Rate information.

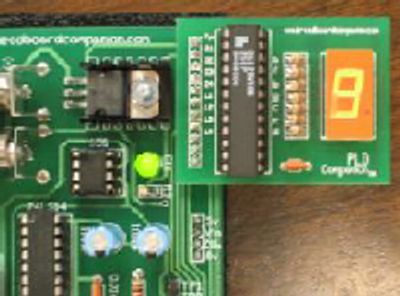

PLD COMPANION - PROTOTYPING BOARD USING A PROGRAMMABLE LOGIC DEVICE (PLD)
Using a Programmable Logic Device (PLD not included), this simple little board allows the Breadboard Companion Power Supply Kit (BBCIII) to prototype digital circuits without the need for a breadboard. Comes with foam base, Great for final, take-home projects. Projects can include:
- Breadboard Kit Sequential Logic Circuits (with BBCIII)
- Combinational Logic Circuits (with BBCIII)
- Regulated, Adjustable Clock Pulse (with BBCIII)
- Four (4) Digital Inputs
- Four (4) Digital Outputs
- Output to a 7-Segment
Price discounts for 50+ kits are available only by purchase order
Please see our pricing structure for all prices by quantity and Flat Shipping Rate information.

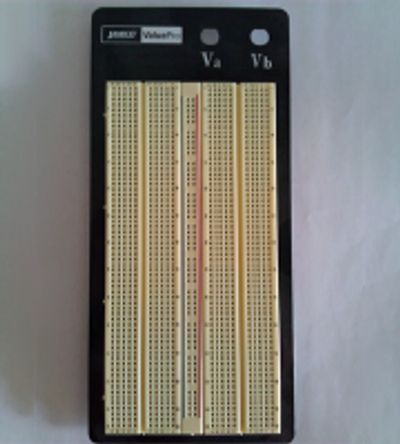

BREADBOARD
This breadboard measures 6.5"l x 3.2"w and includes:
- 2 Terminal Strips
- 1 Bus Strip
- 1,360 Contact Points
- 2 Binding Points
Please call us for actual shipping costs on Breadboard and AC/DC Power Supply prior to issuing a purchase order.

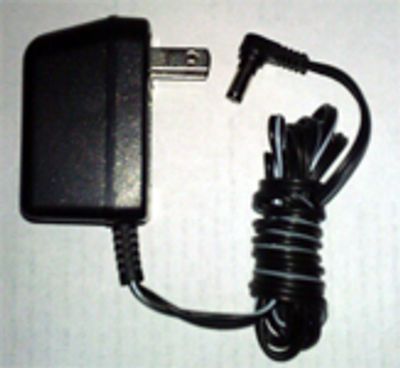

AC/DC POWER SUPPLY
120 VAC to 9 VDC; 200
Please call us for actual shipping costs on Breadboard and AC/DC Power Supply prior to issuing a purchase order
